Growth happens by turning material inside out
Each vine begins as a thin tube folded inward and stored at its base. Pressurized air pushes the folded material forward, where it turns inside out at the leading edge. The deployed body lengthens, but material already touching the environment moves comparatively little along that surface. This process, called eversion, differs from pushing a conventional hose through a passage because extension is concentrated at the tip.
The researchers fabricated their vines from 0.06-millimeter low-density polyethylene sheet. They ultrasonically welded the material into closed tubes 1.5 meters long. Two widths produced inflated diameters of approximately 10 and 20 millimeters. The smaller vines were used in the colon-phantom demonstration, and a silicone tube with a six-millimeter outer diameter served as the working channel.
Fabric sleeves at the vine tips linked the two growing bodies and anchored the channel between them. The sleeves were made slightly wider than the corresponding vines so they could slide as the tubes everted. Motor-controlled spools managed the stored material at each base, while a regulated pneumatic supply inflated the vines. The working channel itself was advanced manually.
Differential pressure produces a sharp turn
Straight growth occurs when both vines inflate together and the working channel is allowed to advance. Turning uses an intentionally asymmetric sequence. To bend left, the operators pressurized the right vine while temporarily holding the working channel. That side continued growing until the paired structure buckled toward the opposite direction. Reversing which vine advanced produced the other turn.
Buckling usually describes a loss of structural stability, but here it becomes a steering mechanism. The two vines form neighboring flexible columns. Extending one farther than the other creates a length imbalance, and the coupled tips translate that imbalance into a bend. The channel helps coordinate the structure because its advancement governs how quickly the linked assembly can move forward.
In an open bench test with the larger vines, the system steered toward and entered a pipe opening. The paper describes a turn approaching 90 degrees. That result shows directional control in the demonstrated arrangement, but the study does not report an accuracy distribution, repeatability rate, path-tracking error or direct comparison with another steering method. Quantitative characterization of the steering gain remains future work.
The pressure test defines a mechanical margin
The authors measured the minimum pressure needed to grow individual 10 and 20-millimeter vines, both with and without their fabric caps, and compared those values with burst pressure. The smaller vine required more pressure to extend because its geometry produced greater friction. Adding the cap made little visible difference to the required growth pressure in the reported test.
Both vine sizes began growing below their measured burst pressures. That separation is useful during design because a robot must have room to increase pressure for steering without immediately rupturing its membrane. It is not a clinical safety margin. The paper does not evaluate manufacturing variation, damage after repeated use, leakage, sterilization, long-duration operation or pressure behavior when the complete system becomes obstructed.
The distinction also matters because the reported bars represent minimum pressure for straight growth. Steering requires higher pressure, according to the authors. A fuller engineering assessment would therefore need measurements for the coupled robot during turns, including transient peaks and the loads transferred through the working channel.
The external channel changes an old trade-off
Working channels are valuable because they can carry hardware or materials to a remote point. Previous vine-robot research has routed channels through the growing body, but miniaturization makes that arrangement difficult. Work from the Morimoto Lab found that internal friction can sharply increase the pressure required for small robots to grow around an internal channel. Its material-scrunching approach stored folded material near the tip and produced prototypes as narrow as 2.3 millimeters.
Other researchers have concentrated on steering. A multi-segment system led by Alexander Kübler used selectively actuated pneumatic muscles and magnetic valves to create several bends without relying on contact with obstacles. That work illustrates the control available from distributed actuators, while also showing how steering components can add mechanical complexity to the robot body.
The new architecture takes a different route. Its channel remains external to both vines instead of passing through either one. In principle, that can reduce internal friction, avoid restricting the payload to the diameter available inside a single vine and leave the two inflatable bodies mechanically simpler. The authors also propose eventual access from points along the robot rather than only its tip. The present prototype does not demonstrate that along-body access, so it remains a design objective rather than a capability.
A phantom bend establishes possibility, not readiness

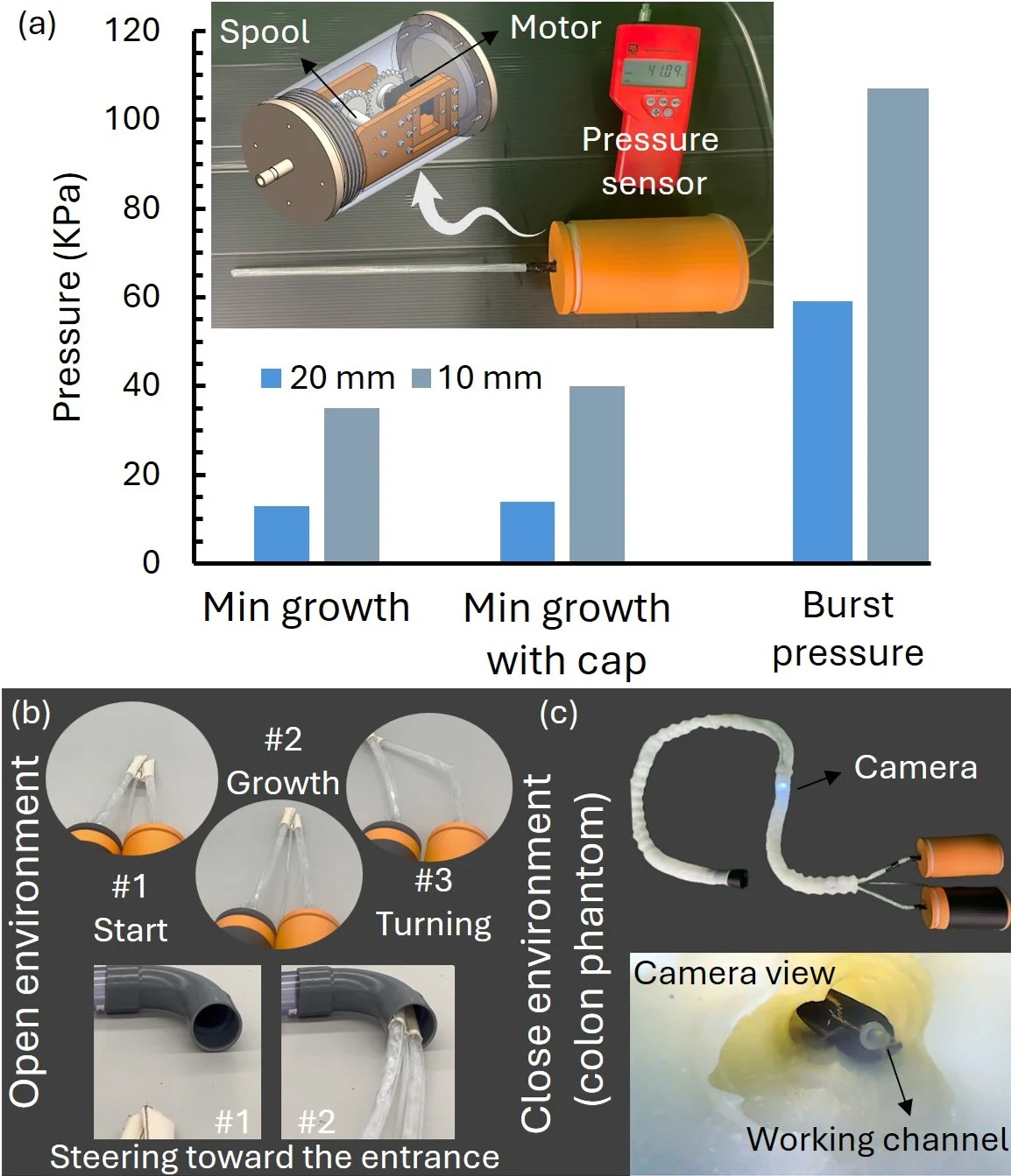

For the confined test, the researchers placed the paired 10-millimeter vines beside a silicone channel shaped to represent colon dimensions. Their published figure shows the bases outside the phantom, the robot following its curve and a camera view near the working channel. The system passed the 90-degree bend while carrying the external tube.
Silicone is useful for repeatable bench development, but it is not living anatomy. The authors note that their phantom was less slippery than a real colon, which increased friction in this particular mechanical test. That observation cannot be converted into a claim that real use would be easier overall. Biological motion, variable geometry, fluids, tissue response and procedural constraints were not evaluated. No animal or human experiment is reported.
The manual channel is another consequential limit. An operator controlled its advancement while the vines were pressurized. Because the channel influences growth speed and helps keep the soft caps positioned, automating it will require coordination with both pneumatic actuators. The paper states that motorization is planned but provides no completed controller or autonomous steering result.
These boundaries keep the immediate achievement narrow and useful. Two soft-growing bodies can cooperate to guide a relatively large, separate channel around a sharp laboratory bend. For inspection robots, a similar arrangement could eventually carry cameras, sampling lines or repair tools through constrained infrastructure. Within the EndoTheranostics research program, the intended longer-term context is endoluminal instrumentation, but the program's clinical goals are not evidence that this prototype is safe or effective for people.
The design now needs the kind of measurement that turns an appealing mechanism into dependable engineering: quantified steering behavior, repeated route trials, controlled channel actuation and evidence that tools can operate without destabilizing the vines. This preprint does not supply those results. It supplies a physical architecture and two demonstrations that justify pursuing them.
